CONE CRUSHERS MP CC 300,, H4800
MPCC300 CH440 H4800 PARTS LIST
|
1 |
452.3027-001 |
Concave ring EC / Ytter Mantel |
H4800 |
|
2 |

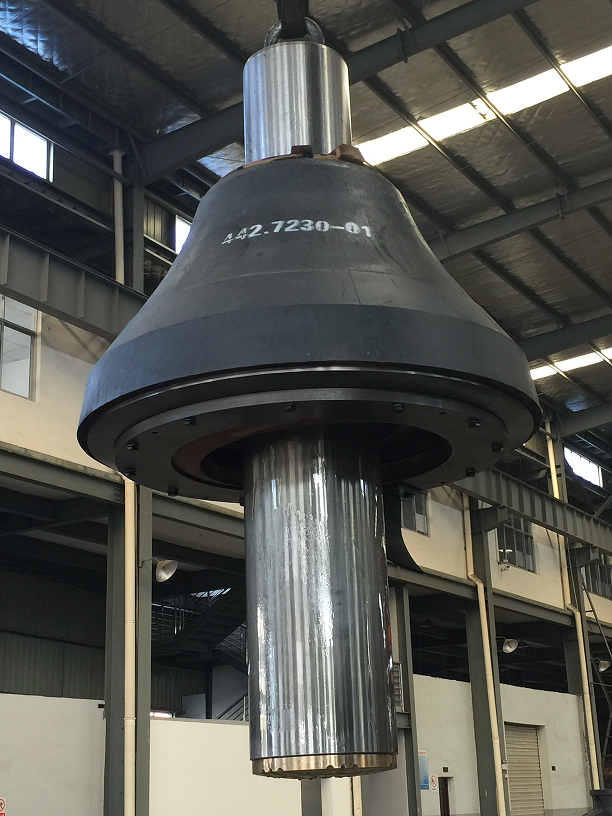

442.7230-01 |
Mantle B / Inner mantel |
H4800 |
|
3 |
442.8421-01 |
Concave ring C / Ytter mantel |
H4800 |
|
4 |
442.7225-01 |
Mantle A / Innermantel |
H4800 |
|
5 |
442.9406-01 |
Eccentric brushing(32+36+40+44) /Eksenter foring |
H4800 |
|
6 |
442.7146-01 |
Bottom shell bushing/stativ foring |
H/S4800 |
|
7 |
442.9408-01 |
Spider bushing / topplager |
H/S4800 |
|
8 |
442.7112-00 |
Chevon packing / Hyd.Syd.Pakning |
H/S4800 |
|
9 |
442.7105-01 |
Head nut / Topmutter |
H/S4800 |
|
10 |
442.7115-01 |
Burning ring / Brennring |
H/S4800 |
|
11 |
442.7193-01 |
Oil seal ring / V-Ring |
H/S4800 |
|
12 |
442.7117-01 |
Main shaft sleeve / Aksel hylse |
H/S4800 |
|
13 |
442.7120-01 |
Main shaft step / Trykklager |
H/S4800 |
|
14 |
442.7122-01 |
Piston wearing plate /Trykklager |
H/S4800 |
|
15 |
442.7172-01 |
Step washer / Mellomlagsplate |
H/S4800 |
|
16 |
868.0282-00 |
Bearing/lager |
H/S4800 |
|
17 |
868.0804-00 |
Bearing/lager |
H/S4800 |
|
18 |
442.7093-00 |
Gir and pinion set / Gir piniong set |
H/S4800 |
|
19 |
442.7151-01 |
Eccentric / Eksenter aksel |
H/S4800 |
|
20 |
442.7104-01 |
Eccentric wearing plate / Eksenter lager |
H/S4800 |
|
21 |
442.7102-01 |
Dust seal ring/ støv ring / Støv ring |
H/S4800 |
|
22 |
442.7492-00 |
Spider cap / topphatt / Top hatt |
H/S4800 |
