CONE CRUSHERS GP 200, GP 300, GP 500

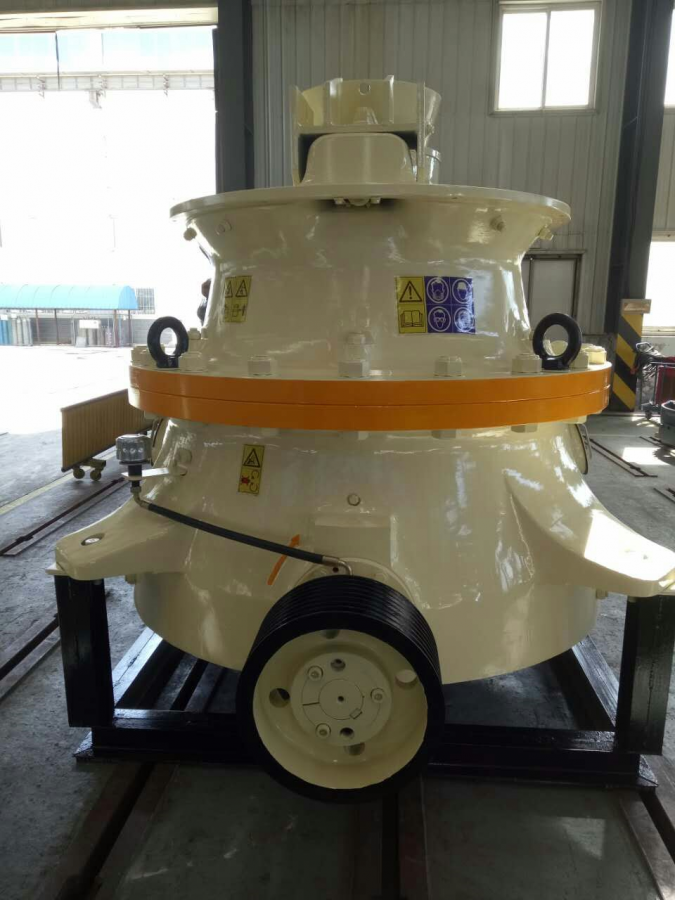

METSO GP 300
_4x3.png)
_4x3.png)
| Description / Stykk liste | Part No. | Vekt 210 kg. | 2 | 1 | |

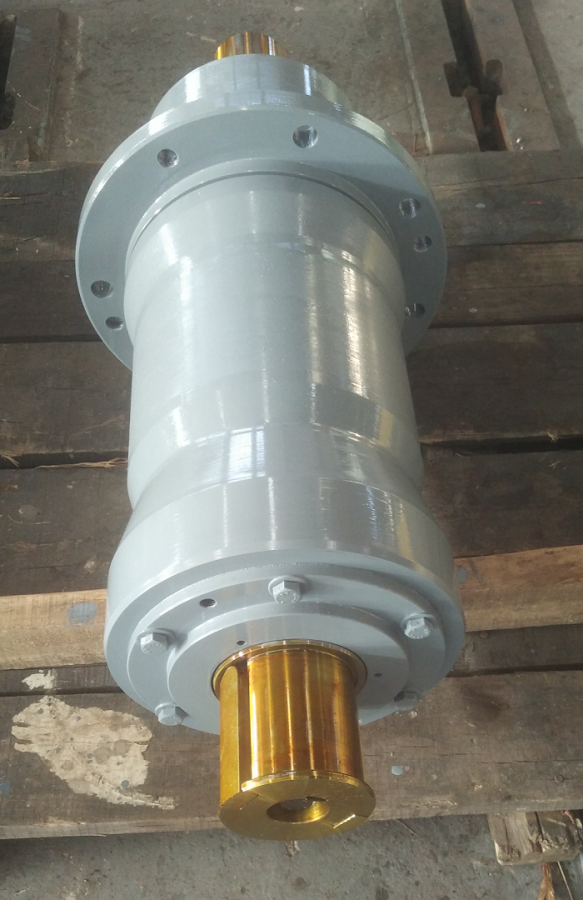

| Countershaft assmbly GP 300 / Drivaksel komplett GP300 | MM0314841 | ||||
| 1 | Countershaft / Aksel | MM0314839 | |||
| 2 | Case / Drivaksel hus | MM0314837 | |||
| 3 | Cover / Endelokk bak | MM0314838 | |||
| 4 | Bushing / Aksel foring bak | MM0224951 | |||
| 5 | Bushing / Aksel foring foran | MM0314840 | |||
| 6 | Pushing plate / Pinjon lokk | 446406 | |||
| 7 | Shim sheet / Shims | 979650167300 | |||
| 8 | O-Ring / O-Ring | 446518 | |||
| 9 | Washer, lock / Lås skiver | 406300555100 | |||
| 10 | Washer lock / Lås skiver | 704005590000 | |||
| 11 | Roller bearing / Rullerlager bak | 705302060300 | |||
| 12 | Plug / Plug | 704103111000 | |||
| 13 | Roller bearing / Rullerlager bak | 705303160308 | |||
| 14 | Screw, Hexagona / 6- kt. Skruer | 7001530196 | |||
| 15 | Screw, Hexagona / 6- kt. Skruer | 7001530310 | |||
| 16 | Shaft seal / Seling ring | MM0215905 | |||
| 17 | Parallell key / Låsekile | 704405693300 | |||
| 18 | Sealing Wax / tetnings masse | 703401976000 | |||
| 19 | |||||

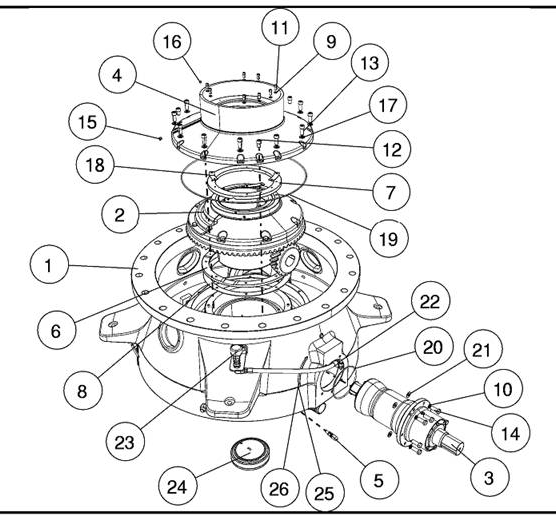

| Part Number | Part Name | ||||
|---|---|---|---|---|---|
| 1 | 8 SPC Ø385. Motor drive pulley of GP 300 / Reimskive til motor |
||||
| 2 | 8 SPC Ø450. Motor drive pulley of GP 300 / Reimskive til motor |
||||
| 3 | 341336 | Mainshaft sleeve of GP 300 / Akselhilse | |||
| 4 | MM0278696 | Spider bushing of GP 300 / Toplager | |||
| 5 | 900303 | Seal / Toplager pakning | |||
| 6 | MM0267450 | Eccentric shaft of GP 300 / Eksenter | |||
| 7 | 931714 | Outer bushing of GP 300 / Stativ foring | |||
| 8 | MM0266967 | Innr bushing of GP 300 / Eksenter Furing | |||
| 9 | 949640547100 | Shim / Shims | |||
| 10 | MM0585733 | Armprotection / Armbeskytelse | |||
| 11 | MM0521380 | Bronse bearing / Lager ring - Bronse | |||
| 12 | MM0523930 | Ring over exenter | |||
| 13 | 914874 | Shim Under / MM0521380 | |||
